CI/CD in App Development with GitHub Actions and Fastlane

Modern app development no longer ends when the last line of code is written. In today’s fast-paced mobile ecosystem, success depends on how efficiently teams can build, test, and deploy applications while maintaining quality and consistency. This is where Continuous Integration (CI) and Continuous Delivery (CD) come in — together forming a process that automates everything from code merging to releasing builds into production.

For mobile development, tools such as GitHub Actions and Fastlane are now industry-standard solutions that streamline the delivery process, eliminate human error, and accelerate release cycles.

This article explores how CI/CD can be effectively implemented for Android and iOS apps using these tools, discussing architecture, best practices, and advanced automation strategies.

---

2. What is CI/CD and Why It Matters

Let’s clarify the two terms:

• Continuous Integration (CI): The practice of automatically building and testing code whenever a developer pushes changes to the repository. It ensures new code integrates smoothly with the main branch, reducing integration issues and enabling early bug detection.
• Continuous Delivery (CD): The automation of deploying verified builds to testing or production environments. Instead of manually uploading a new app version, CD ensures that deployment is reproducible, consistent, and fast.

In short:

CI ensures your app builds and tests successfully after every change.

CD ensures your app releases reliably and automatically after passing tests.

For app development teams, CI/CD helps achieve:

• Faster iteration and shorter release cycles.
• Consistent build environments.
• Reduced manual errors during publishing.
• Automated quality gates (linting, testing, signing, and deployment).

---

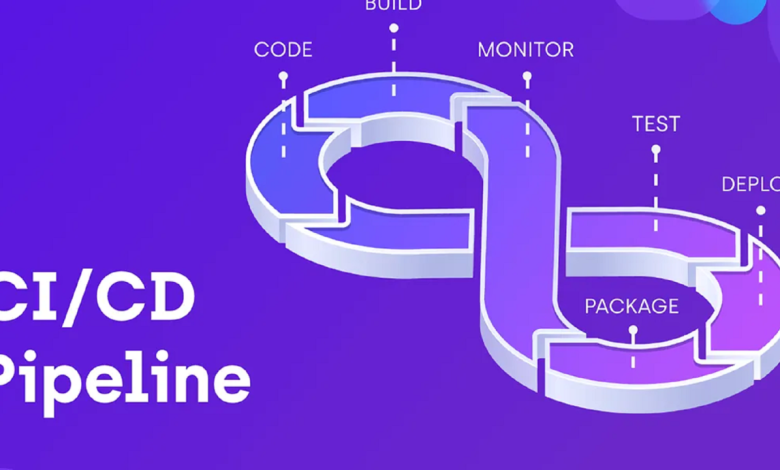

3. CI/CD Workflow Overview for App Development

A typical CI/CD pipeline for mobile apps involves several automated stages:

1. Code Commit: Developers push changes to a Git branch (e.g., feature/login-ui).
2. Build Trigger (CI): GitHub Actions detects the change and triggers a workflow file (.yml) that defines build steps.
3. Static Analysis & Testing: The pipeline runs lint checks, unit tests, and possibly UI tests.
4. Build & Sign App: Fastlane automates the build process (Gradle for Android, Xcode for iOS), handles code signing, and generates an APK/IPA.
5. Distribute or Deploy (CD): The pipeline uploads the build to beta testing platforms (like Firebase App Distribution or TestFlight) or directly to production (Play Store/App Store).

---

4. Why GitHub Actions and Fastlane?

GitHub Actions

GitHub Actions is a CI/CD service built directly into GitHub. It allows developers to define custom workflows using YAML files stored in the repository under .github/workflows/.

Each workflow specifies triggers (such as push or pull_request), jobs, and steps — which can run scripts, Docker containers, or pre-built actions from the GitHub Marketplace.

Key advantages:

• Fully integrated with GitHub repositories.
• Supports Linux, macOS, and Windows runners.
• Scales easily with concurrent workflows.
• Rich marketplace for existing build/test/deploy actions.

Fastlane

Fastlane is an open-source toolchain that automates tedious app release tasks — signing, building, screenshots, metadata, and deployment.

It supports both Android and iOS, and integrates well into any CI/CD platform (including GitHub Actions).

Common Fastlane commands (lanes):

• fastlane gym → build and package app.
• fastlane test → run unit/UI tests.
• fastlane beta → distribute to testers.
• fastlane release → upload to Play Store / App Store.

---

5. Setting Up a CI/CD Pipeline with GitHub Actions and Fastlane

Let’s go step by step through a practical setup.

---

Step 1: Project Preparation

Before automation, make sure your repository contains:

• Source code for your app (android/ and/or ios/ directories).
• A valid Fastfile defining lanes for building and deploying.
• Required configuration files:

gradle.properties (Android)
Appfile and Deliverfile (iOS)
Gemfile (optional, for Ruby dependencies)

Make sure all credentials (signing keys, certificates, API tokens) are stored securely as GitHub Secrets, not committed to the repo.

---

Step 2: Create a Workflow File

In your repository, create a file at:

.github/workflows/ci_cd.yml

Here’s an example workflow for Android:

name: Android CI/CD

on:
  push:
    branches: [ main ]
  pull_request:

jobs:
  build:
    runs-on: ubuntu-latest

    steps:
      - name: Checkout repository
        uses: actions/checkout@v4

      - name: Set up JDK 17
        uses: actions/setup-java@v4
        with:
          java-version: '17'
          distribution: 'temurin'

      - name: Cache Gradle dependencies
        uses: actions/cache@v3
        with:
          path: ~/.gradle/caches
          key: ${{ runner.os }}-gradle-${{ hashFiles('**/*.gradle*', '**/gradle-wrapper.properties') }}

      - name: Install dependencies
        run: ./gradlew dependencies

      - name: Run tests
        run: ./gradlew test

      - name: Build with Fastlane
        run: bundle exec fastlane android beta
        env:
          PLAY_STORE_JSON_KEY: ${{ secrets.PLAY_STORE_JSON_KEY }}
          SIGNING_KEY_PASSWORD: ${{ secrets.SIGNING_KEY_PASSWORD }}

This workflow triggers on every push to main and:

1. Checks out the code.
2. Sets up Java and Gradle.
3. Runs tests.
4. Calls Fastlane to build and deploy the app.

For iOS, the process is similar but runs on macos-latest and uses Xcode tools.

---

Step 3: Configure Fastlane

Inside your Android project, initialize Fastlane:

cd android
fastlane init

This generates a Fastfile with customizable lanes. Example:

default_platform(:android)

platform :android do
  desc "Build and upload to Play Store (Beta)"
  lane :beta do
    gradle(task: "clean assembleRelease")
    upload_to_play_store(
      track: "beta",
      json_key: ENV["PLAY_STORE_JSON_KEY"]
    )
  end
end

For iOS:

platform :ios do
  desc "Build and upload to TestFlight"
  lane :beta do
    build_app(scheme: "MyApp")
    upload_to_testflight
  end
end

Once configured, fastlane beta automates the entire build and upload.

---

6. Advanced CI/CD Techniques

To make the pipeline more powerful and production-grade, consider adding the following:

1. Multi-environment Support

Use environment variables and Fastlane lanes for separate configurations:

• beta, staging, production

Each can use different signing keys, server URLs, or Firebase credentials.

2. Parallel Jobs

GitHub Actions allows running Android and iOS builds in parallel, reducing total build time:

jobs:
  android: ...
  ios: ...

3. Automated Testing

Integrate:

• Unit Tests: via Gradle (./gradlew test) or Xcode (xcodebuild test).
• UI Tests: via Espresso (Android) or XCTest (iOS).
• Static Analysis: using Detekt, Lint, or SwiftLint.

4. Code Signing Automation

Store signing files in encrypted GitHub Secrets:

• Android: keystore.jks encoded as base64.
• iOS: .p12 and provisioning profiles managed via Fastlane match.

5. Notifications

Add Slack or email notifications for build status:

- name: Notify Slack
  uses: 8398a7/action-slack@v3
  with:
    status: ${{ job.status }}

6. Versioning & Changelog

Use Fastlane plugins like:

• increment_version_code
• changelog_from_git_commits

These ensure each release is automatically versioned and documented.

---

7. Security and Best Practices

Security is critical in CI/CD since pipelines handle sensitive credentials. Follow these best practices:

• Never hardcode secrets (use GitHub Secrets or an external vault).
• Use least-privilege access tokens (e.g., scoped service accounts for Play Store).
• Rotate credentials periodically.
• Sign artifacts before distribution.
• Audit build logs for sensitive information leaks.

Additionally, make sure to run isolated runners (self-hosted) for internal or enterprise projects to avoid dependency exposure.

---

8. Monitoring and Maintenance

CI/CD pipelines aren’t “set and forget.” Continuous improvement is part of the philosophy.

Monitor metrics like:

• Average build time.
• Test pass rate.
• Deployment frequency.
• Failure recovery time.

GitHub Actions provides logs and execution history, while tools like Datadog, Grafana, or Sentry can visualize build performance over time.

It’s also recommended to version your pipelines — treat workflow YAML files as code, review them in pull requests, and document every change.

---

9. Benefits of a Mature CI/CD System

Once implemented correctly, a CI/CD system with GitHub Actions + Fastlane delivers tangible benefits:

---

10. Common Pitfalls to Avoid

Even advanced teams encounter CI/CD challenges. Common mistakes include:

• Poorly managed signing credentials.
• Ignoring failed tests or warnings.
• Overcomplicated workflows (difficult to debug).
• Missing rollback strategy.
• Building on every commit without caching dependencies.

To mitigate these, start small — automate builds first, then gradually expand to full release automation.

---

11. The Future of CI/CD in Mobile Development

The evolution of CI/CD is moving toward intelligent automation — pipelines that can adapt dynamically based on code changes and AI-driven quality gates.

We’re seeing increased adoption of:

• Serverless CI/CD (on-demand runners).
• Mobile-specific CI tools (Bitrise, Codemagic).
• Infrastructure as Code (IaC) integration.
• Automated rollback and canary releases.

In essence, CI/CD will continue evolving to provide faster, safer, and more autonomous delivery pipelines for complex mobile ecosystems.

---

12. Conclusion

Implementing CI/CD using GitHub Actions and Fastlane transforms how app development teams build and release software.

It brings automation, repeatability, and reliability to a process that was traditionally manual and error-prone.

With proper setup — including secure credentials, environment-specific lanes, and continuous monitoring — teams can achieve truly continuous delivery, pushing updates confidently and frequently.

In modern software engineering, mastering CI/CD is no longer optional.

It’s the foundation of delivering high-quality applications at scale, with speed and precision.
